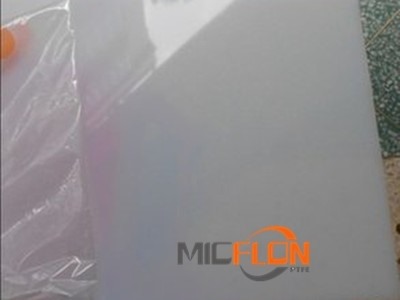

Introduce Fep sheet
FEP sheet is a modified category of PTFE.
It remains basically the properties of PTFE, like excellent high- low-temperature resistance,
chemical stability, dielectricity, high non-adhesiveness and mechanical strength.
Compare to PTFE, it has better elasticity and transparency and is only 50℃ lower than PTFE by limit of high temperature resistance.
FEP applications include but not limited to electronic items such as wire covering and FEP spaghetti tubing,
FEP linings for pipes in the chemical industry, aircraft wiring, and glazing for solar energy collectors.
Specifications:
| Item | Unit | Result | |
| Sheet & Rod | Tube & Film | ||
| Density | g/cm3 | 2.14-2.17 | |
| Tensile Strength | Mpa | 20 | 14 |
| Tear Elongation | % | 200 | 175 |
| Working temperature | ℃ | -196~+200 | |
| Die Electric Strength | Kv/mm | 15 | |
Sheet & Film, Unit: mm
| Item | Thickness | Width | Length | Application |
| Molded sheet | 1-50 | 100-1000 | 100-2000 | Used for anti-corrosion, sealing, anti-friction, insulation. |
| Film | 0.03-0.2 | ≤600 | ≥10000 | Used for anti-corrosion, sealing, anti-sticking, insulation. |
| Extruded sheet | 0.05-0.5 | ≤500 | ≥10000 |
