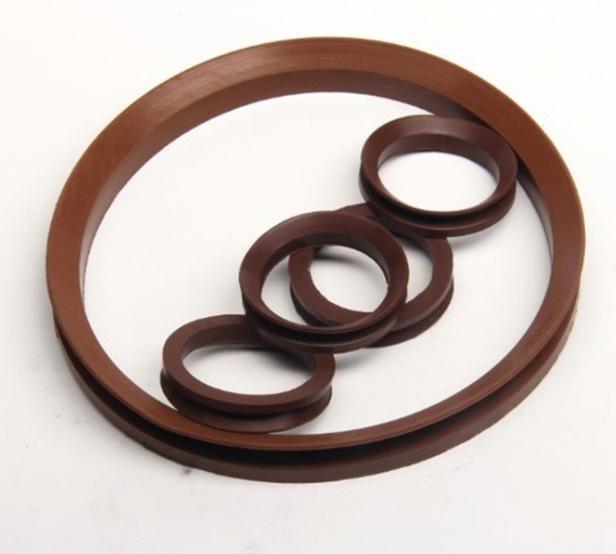

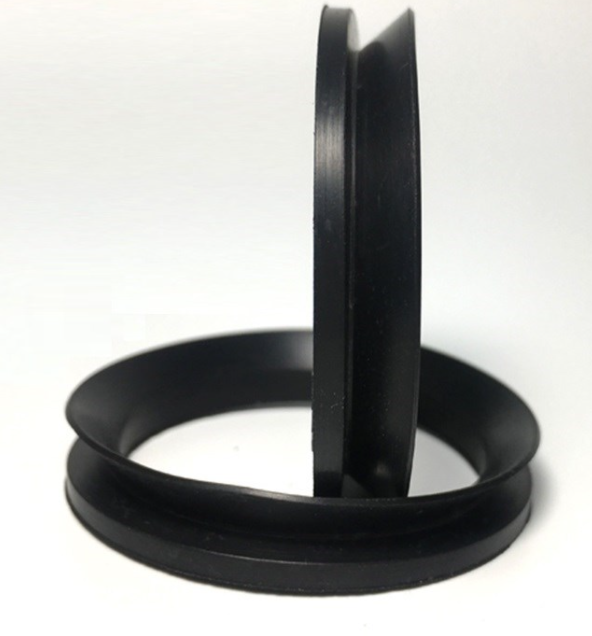

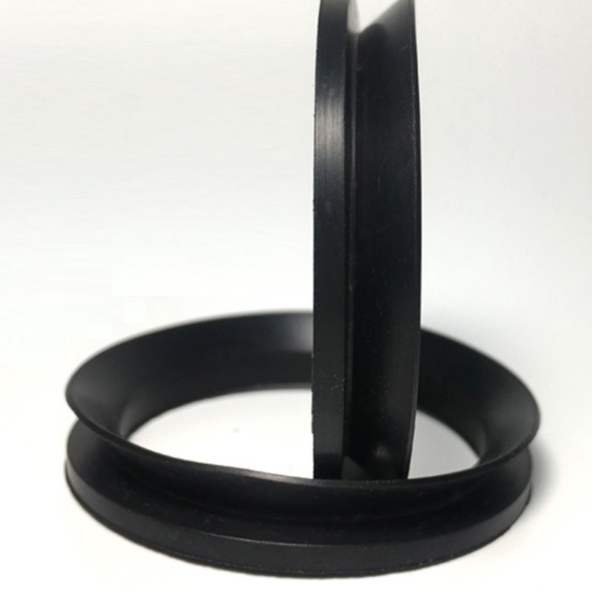

Hydraulic Cylinder FKM NBR Rubber V-ring Water Seal VA Ring Seal
Hydraulic Cylinder FKM NBR Rubber Vring Water Seal VA Ring Seal

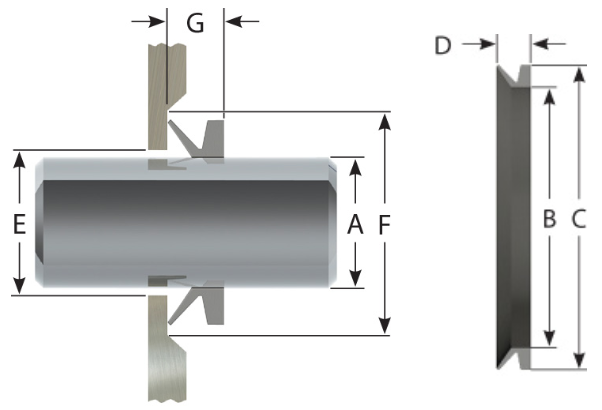

| The VA seal ring is attached to the shaft and rotates with the shaft. In addition, the tapered sealing lip prevents angular offset. The role of the VA type seal ring is to prevent the intrusion of external dirt and the leakage of internal grease. The intermediate connection part can ensure that the sealing lip produces a slight pressing force on the sealed surface to achieve a durable and effective sealing. |
Hydraulic Cylinder FKM NBR Rubber Vring Water Seal VA Ring Seal
| Material | Hardness | Speed | Temperature ℃ |
| NBR (Nitrile, Buna-N) | 60-70 Shore A | <=8 m/s | -40 to +120 |
| FKM (FPM) | 60-70 Shore A | <=10 m/s | -30 to +220 |
Hydraulic Cylinder FKM NBR Rubber Vring Water Seal VA Ring Seal
Hydraulic Cylinder FKM NBR Rubber Vring Water Seal VA Ring Seal
Hydraulic Cylinder FKM NBR Rubber Vring Water Seal VA Ring Seal
Advantages:1) Pure rubber elastomer material without metal parts 2) Reduced design work, no installation processing requirements 3) Elimination of shaft mating surface processing and surface accuracy, hardness requirements, the shaft surface does not have to be hardened 4) Easy and reliable installation and removal 5) The surface contact pressure is small, so the friction force is small, the friction loss and the friction heat are small, and the service life is long 6) Both sealed and dustproof |
hydraulic Cylinder FKM NBR Rubber V-ring Water Seal VA Ring Seal
va seal water seal va ring sea
excavator hydraulic rod va axial rva seals
Quick Details
- Size:
-
As per your application
- Place of Origin:
-
Guangxi, China
- Brand Name:
-
NUOANKE
- Model Number:
-
V-ring VA/VS/VL/VE
- Product name:
-
FKM NBR Rubber V-ring Water Seal VA Ring Seal
- Keyword:
-
V Ring Seal Water Pump Shaft Seal
- Application:
-
Gearbox, Electric Motors, Drives etc
- Feature:
-
Most Common Style
- Medium:
-
Water, Oil, Air, Dust etc
- Material:
-
NBR FKM
- Color:
-
Black Brown
- Temperature Range:
-
-40 to +220 ℃
- Hardness:
-
60-75 Shore
- Certificate:
-
ISO9001/TS16949
