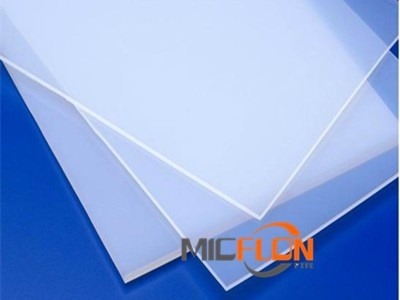

PCTFE SHEET

Mô tả sản phẩm

Introduce PTCFE sheet

PCTFE is a kind of perfect sealing material under low temperature, high vacuum system and high pressure working conditions.

It has excellent rigidity, low temperature resistance, cryogenic fluid resistance, and air flow resistance.

Main Properties

Near-zero moisture absorption
Excellent performance under a wide temperature range
Resists most corrosive chemicals
Excellent electrical-insulating properties
Extremely low out-gassing

Main technical indicators:

Index name	Unit	Result
Density	g/cm3	2.10-2.18
Tensile strengt	Mpa	35
Elongation ratio	%	20
Temperature range	℃	-200-150
Dielectric strength	Kv/mm	15

Application:

PCTFE is a good choice for instrumentation, laboratory, aerospace and flight applications.

Other common applications include cryogenics, valves, seals, and film for food and pharmaceutical packaging.

Specification:

PCTFE Sheet (100mm*120mm; 200mm*200mm; 300mm*300mm; 400*400mm, 500*500mm,special size can be customized)
